PHASE II

Water Balance and Hydrological Analysis

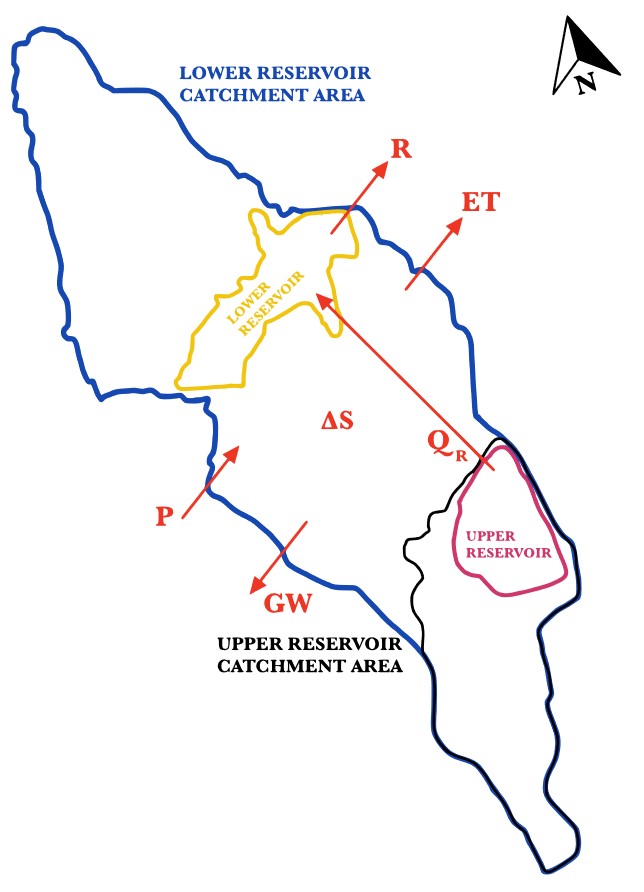

Ensemble Meteorological Dataset for North America (EMDNA) forcing data was used to simulate a historical streamflow record, confirm the hydrological feasibility of the project, and establish an average annual water balance for the site.

R = P − ET − ΔS − GW =

1149 mm−861 mm−1.9 mm−7.9 mm =

278 mm

For the total watershed area of 5.557 km², this result corresponds to an average outflow of approximately 0.05 m³/s.

Operational Plan

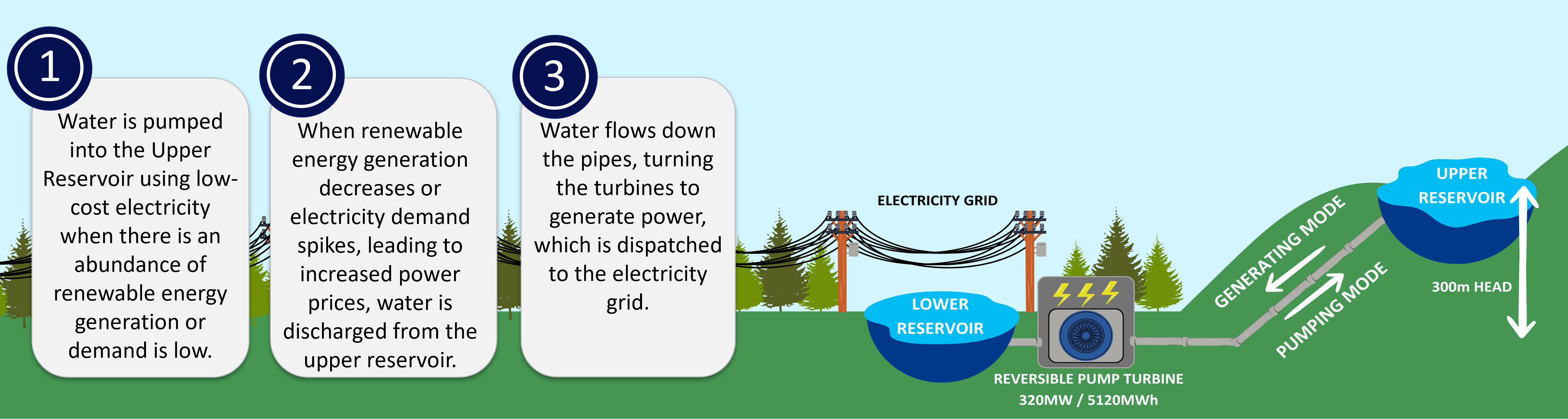

Operating the facility on a cycle of 8 hours of generating to 10 hours of pumping was the most effective amongst the tested scenarios. Based on 2022 pool prices in Alberta, the facility could expect to have a net revenue approximately between $70-155 million per year; translating to an annual percentage variance of 12.03% and 29.28%, respectively.

Phase III

Contact

monique.beaulieu@ucalgary.ca

Land Acknowledgment

Land Acknowledgement: We would like to acknowledge that our University is located on Treaty 7 Territory, which is the traditional territory of the Blackfoot Confederacy, comprised of the Siksika, the Piikani, and the Kainai First Nations; the Tsuut’ina First Nation; and the Stoney Nakoda, which includes the Chiniki, Bearspaw, and Goodstoney First Nations. Treaty 7 is also home to the Métis Nation of Alberta – Region III.

References:

[1] Evolve Power. "Tent Mountain Pumped Hydro Energy Storage." [Online]. Available: https://evolvepower.ca/what-we-do/tent-mountain-pumped-hydro-energy-storage/. [March 23, 2024].
